SCADA is called Supervisory Control and Data
Acquisition System. This is most popular automation system for industries and
the power sector. At the major power plant system has used this automation to
control and observation equipment to required command. In the region of our
country, the SCADA system can be stabilized for transmitting & distributing
efficient electrical power.
Working Process of SCADA System
SCADA is a data acquisition and controlling system.

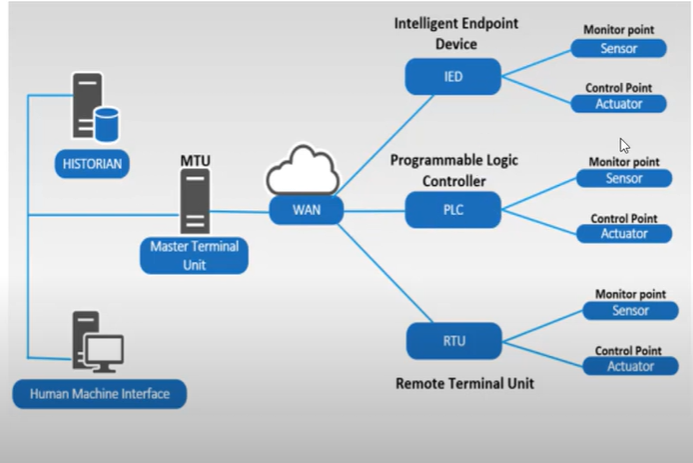

It has 4 working steps. At first its collects data from monitoring point or
control point by the help of sensor, actuator or transducer. After that this
field equipment data are process in IED, PLC & RTU. The Remote Terminal
Unit (RTU) is back dated. At the beginning of SCADA system, it has been used. But
now at all automation and controlling system use the Intelligent End Point
Devise (IED) or Programable Logic Unit (PLC). The PLC and IED also similar but
the IED have a greater number of input & output compere to PLC. After the data acquisition the information
passes over a communication channel or a WAN network to Master Terminal Unit
(MTU). The MTU stored data and help visualize by HMI (Human Machine Interface)
to make a diction or control of a equipment.
Why should we have stabilized SCADA in our
country?
Bangladesh has around 11,123 KMS transmission and
6.14 lakhs KM distribution lines length. According to Power Cell, the total
number of Grid Substation is 193 and Power plant is 146. The system loss of
Bangladesh is 11.12%, transmission loss 3.06% and the distribution loss is
8.48%. By using the SCADA system measuring the field equipment data, it can be reducing
the losses, increasing cost and the incorrect billing. The SCADA system of line
measure often 25%- 30% accurate date to compere others. Through SCADA, we can
control of a substation equipment, observe the condition and previous strategy
and then we can make diction, it will work efficient or not in short time. The
distribution load side can be control and observe by SCADA. It will be more
efficient to generation power this the various of load in a short duration. In
future Bangladesh power section will be fully automated and the generation
plant and substation can be controlled by any point and provided an efficient
power.
